|Place of Origin:||Nnajing, China|
|Brand Name:||Dahua Sling|
|Certification:||CE TUV/GS ISO|
|Model Number:||Round sling|
|Minimum Order Quantity:||1000pcs|
|Packaging Details:||Shrink film, carton and pallets|
|How Many Workers:||200||Year Of Establish:||1993|
|Safety Factor:||5:1, 6:1.7:1.8:1||Usage:||LIFTING|
|Color:||All Available||Warranty:||1 Year|
|Standards:||ISO4878 EN1492-2 ASME B30.9||Advantage:||The Most Flexible Style Of Sling|
round lifting slings,
round webbing sling
Material: A-A grade 100% Polyester
Safety Factor: 6:1 7:1 8:1
Length: As required
Standard: ISO4878 EN1492-2 ASME B30.9
Characteristic: PU impregnated ,WLL & Length printed,Low elongation
Color: Color code
Package:Single packed in shrinking foil or plastic with Certificate of Conformity
|Color Code||Vertical Hitch Capacity||Choker Hitch Capacity||Basket Hitch Capacity||Width Under Load||Length|
|Blue||21,200 lb.||17,000 lb.||42,400 lb.||2-5/8"||20 ft.|
|Gray||31,000 lb.||24,800 lb.||43,000 lb.||3-1/4"||20 ft.|
|Green||5300 lb.||4200 lb.||10,600 lb.||1-3/8"||20 ft.|
|Purple||2600 lb.||2100 lb.||5200 lb.||1"||20 ft.|
|Red||13,200 lb.||10,600 lb.||26,400 lb.||2"||20 ft.|
|Tan||10,600 lb.||8500 lb.||21,200 lb.||1-7/8"||20 ft.|
|White||16,800 lb.||13,400 lb.||33,600 lb.||2-1/8"||20 ft.|
|Yellow||8400 lb.||6700 lb.||16,800 lb.||1-3/4"||20 ft.|
|Black||90,000 lb.||72,000 lb.||180,000 lb.||5-1/4"||20 ft.|
|Olive||66,000 lb.||52,800 lb.||132,000 lb.||4-5/8"||20 ft.|
Always protect Roundslings from corners, edges or protrusions.

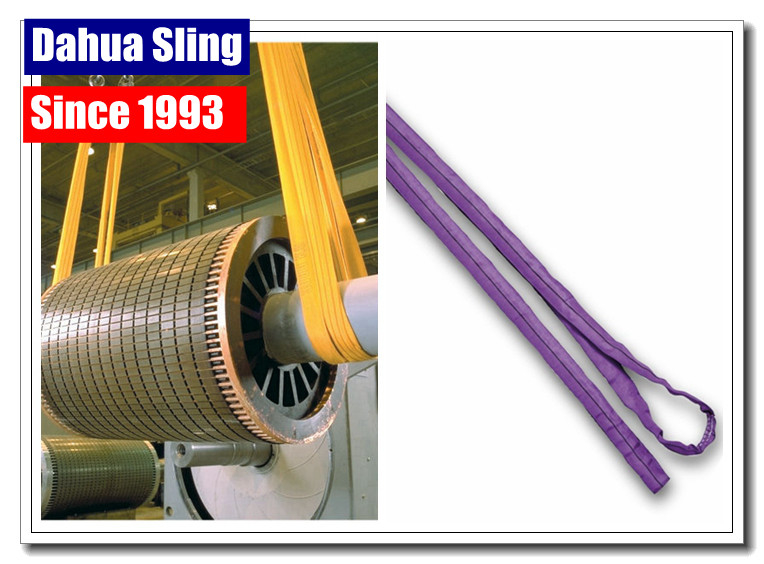

It is an endless synthetic sling made from a skein (continuous loop or hank) of polyester yarn covered by a double wall tubular jacket. The roundsling body can also be compared to sling webbing with the tubular jacket face yarns woven without binder yarns; this allows the core yarns to move independently within the jacket.
• Conforms to shape of load to grip securely
• Load bearing yarns protected from UV degradation
• Red striped white core yarns provide added visual warning of sling damage
• Color coding provides positive sling capacity information Saves Money
• Double wall cover for greater sling life
• Soft cover won’t scratch load surface
• Conforms to shape of load for reduced load damage
• Seamless - no sewn edges to rupture prematurely, requiring removal from service
• Color coded capacities for quick identification
• Light weight and pliable for easy rigging and storage
• Independent core yarns choke tightly, but release easily after use
• Easy to carry - high strength to weight ratio for easy transportation All Lift-All slings meet or exceed OSHA and ASME B30.9 standards and regulations. Always protect synthetic slings from being cut by corners and edges. See page 14 Promotes Safety
• Light weight reduces fatigue and strain on riggers
• Synthetic materials won’t cut hands
• Consistent matched lengths for better multiple sling load control
• No loss of strength from abrasion to cover
• Low stretch (about 3% at rated capacity)
The unique advantages of Round sling:
1, Color code, in according with international standard, to validate sling capacity.
2, Special thickness sleeves and special technical to add using life.
3, Each strips equal to 1ton capacity, it is easy to differentiate sling capacity.
4, Clearly print WLL and length on surface of sling.
5, Change-bearing point to add using life.
6, If the core material no break, no loss of strength from abrasion, there is a simple ness way, it is easy to differentiate to decide if the sling is
Taken away from service or not.
7, 100% polyester has less than 4% extension at rated capacity, and will return originally length, and 8%-11% extension at break.
8, Clearly tag with serial number and a copy of certificate together with one sling.
9, Working temperature range: -40º C-100º C
Round sling 1ton, Round sling 2ton, Round sling 3ton, Round sling 4ton, Round sling 5ton, Round sling 6ton, Round sling 8ton, Round sling 10ton, Round sling 12ton, Round sling 20ton, 30ton, 40ton, 50ton, 60ton, 80ton, 100ton, 120ton.
Carton & Pallet are generally used.
Wooden or sacks is available.
What We Have
· China Leading Rigging Hardware And Producing Technology
· Big Production Ability
· Fast Delivery
· Super High Quality
· Competitive Price
· Ten Years' Export Experience
· Excellent Sale and After-sale Service
· OEM Available
1. Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
2. Is the sample available?
Yes, samples are available for you to test the quality.
3. Are the products tested before shipping?
Yes, all of our products was qualified before shipping.
4. What's your quality guarantee?
We have different kinds of products which can meet different quality standard.
Our QC department will test products before shipping. We have 100% quality guarantee to customers.
We will be responsible for any quality problem.
5. What's benefit will you bring?
Your client satisfied on the quality.
Your client continued orders.
You can get good reputation from your market and obtain more orders.
Nanjing Dahua Speical Belt Knit Co. Ltd is a professional manufacture of Polyester Lifting Slings, ratchet tie downs, webbing tow straps and customized webbing equipments. We constantlyfocus on the requirements of our customers, and ensure that we meet and exceed their expectations. Welcome to our company and look forward to hearing from you.
