Place of Origin: | Nnajing, China |
Brand Name: | Dahua Sling |
Certification: | CE TUV/GS ISO |
Model Number: | Round sling |
Minimum Order Quantity: | 1000pcs |
---|---|
Price: | 8 USD |
Packaging Details: | Shrink film, carton and pallets |
How Many Workers: | 200 | Year Of Establish: | 1993 |
---|---|---|---|
Safety Factor: | 5:1, 6:1.7:1.8:1 | Usage: | LIFTING |
Color: | All Available | Warranty: | 1 Year |
Standards: | Meet Or Exceed OSHA And ASME B30.9 Standards | Advantage: | The Most Flexible Style Of Sling |
High Light: | round lifting slings,round webbing sling |
Dahua Sling securing heavy loads. Roundslings designed for use with EN240 (21,200lb vertical capacity)
Dahua endless roundslings are engineered to resist abrasion while securing heavy loads. Round slings designed for use with EN240 (21,200lb vertical capacity) and smaller feature Polyester construction. Roundslings designed for use with EN360 (31,000lb vertical capacity) and larger feature a Tufhide jacket, constructed from polyester and nylon. The Tufhide jacket helps reduce heat buildup that would otherwise damage high capacity roundslings when used in a choker hitch.
Color Code | Vertical Hitch Capacity | Choker Hitch Capacity | Basket Hitch Capacity | Width Under Load | Length |
Polyester | |||||
Blue | 21,200 lb. | 17,000 lb. | 42,400 lb. | 2-5/8" | 20 ft. |
Gray | 31,000 lb. | 24,800 lb. | 43,000 lb. | 3-1/4" | 20 ft. |
Green | 5300 lb. | 4200 lb. | 10,600 lb. | 1-3/8" | 20 ft. |
Purple | 2600 lb. | 2100 lb. | 5200 lb. | 1" | 20 ft. |
Red | 13,200 lb. | 10,600 lb. | 26,400 lb. | 2" | 20 ft. |
Tan | 10,600 lb. | 8500 lb. | 21,200 lb. | 1-7/8" | 20 ft. |
White | 16,800 lb. | 13,400 lb. | 33,600 lb. | 2-1/8" | 20 ft. |
Yellow | 8400 lb. | 6700 lb. | 16,800 lb. | 1-3/4" | 20 ft. |
Polyester/Nylon | |||||
Black | 90,000 lb. | 72,000 lb. | 180,000 lb. | 5-1/4" | 20 ft. |
Olive | 66,000 lb. | 52,800 lb. | 132,000 lb. | 4-5/8" | 20 ft. |
WARNING !
Always protect Roundslings from corners, edges or protrusions.

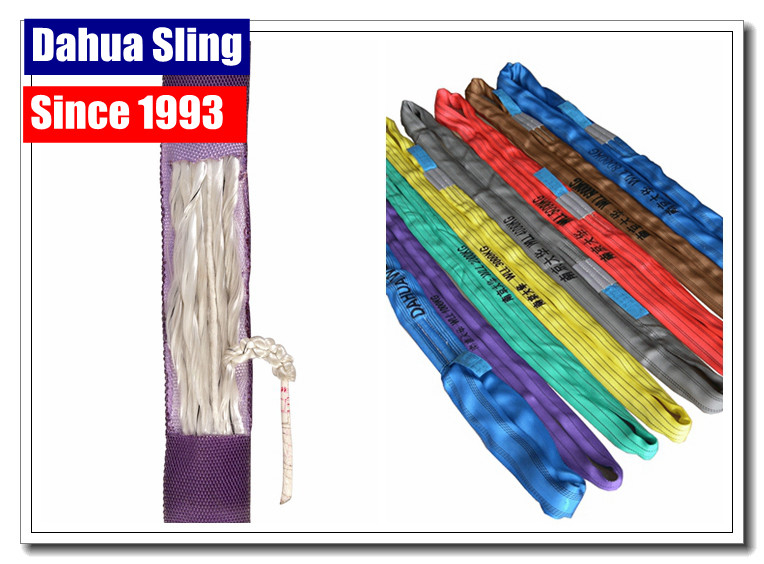

It is an endless synthetic sling made from a skein (continuous loop or hank) of polyester yarn covered by a double wall tubular jacket. The roundsling body can also be compared to sling webbing with the tubular jacket face yarns woven without binder yarns; this allows the core yarns to move independently within the jacket.
• Conforms to shape of load to grip securely
• Load bearing yarns protected from UV degradation
• Red striped white core yarns provide added visual warning of sling damage
• Color coding provides positive sling capacity information Saves Money
• Double wall cover for greater sling life
• Soft cover won’t scratch load surface
• Conforms to shape of load for reduced load damage
• Seamless - no sewn edges to rupture prematurely, requiring removal from service
• Color coded capacities for quick identification
• Light weight and pliable for easy rigging and storage
• Independent core yarns choke tightly, but release easily after use
• Easy to carry - high strength to weight ratio for easy transportation All Lift-All slings meet or exceed OSHA and ASME B30.9 standards and regulations. Always protect synthetic slings from being cut by corners and edges. See page 14 Promotes Safety
• Light weight reduces fatigue and strain on riggers
• Synthetic materials won’t cut hands
• Consistent matched lengths for better multiple sling load control
• No loss of strength from abrasion to cover
• Low stretch (about 3% at rated capacity)
About us
Nanjing Dahua Speical Belt Knit Co. Ltd is a professional manufacture of Polyester Lifting Slings, ratchet tie downs, webbing tow straps and customized webbing equipments. We constantlyfocus on the requirements of our customers, and ensure that we meet and exceed their expectations. Welcome to our company and look forward to hearing from you.
Contact Person: Mr. Gao
Tel: 0086 25 5705 3551
