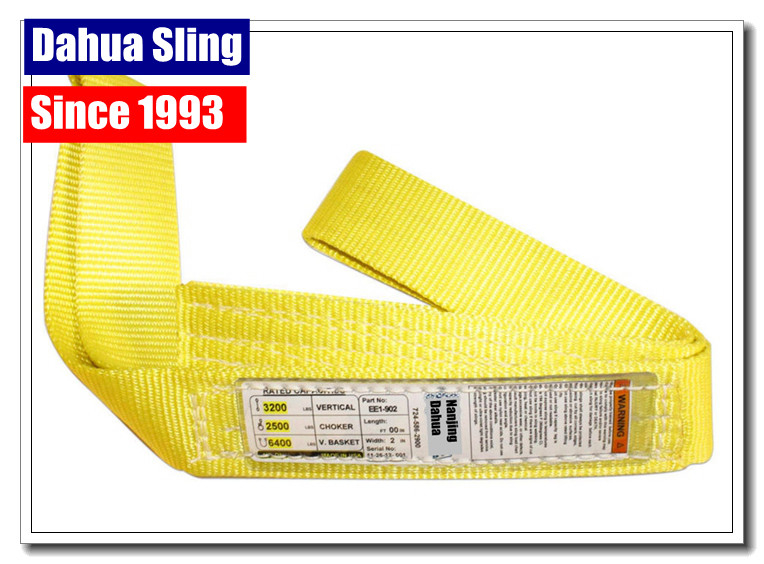

Light Duty Flat Lifting Slings Industrial Lifting Belt 4800 Lb Basket Capacity

Light Duty Flat Lifting Slings Industrial Lifting Belt 4800 Lb Basket Capacity

  • Light Duty Flat Lifting Slings Industrial Lifting Belt 4800 Lb Basket Capacity
Light Duty Flat Lifting Slings Industrial Lifting Belt 4800 Lb Basket Capacity
Product Details:
Place of Origin: China
Brand Name: Dahua Sling
Certification: CE TUV/GS
Model Number: eye eye webbing sling
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: USD 30,000 / 20'GP
Packaging Details: Shrink film and carton pallets
Contact Now
Detailed Product Description
Basket Capacity:: 4800 Lb Choker Capacity:: 1900 Lb
Color:: Yellow Eye Length:: 6"
Material: 100 % Polyester Specification:: WSTDA-WS-1
Width:: 1 In - 12 Inches Type:: Web Sling
Packing: Blank Or Printed Sling Type: Type 3 Eye & Eye
Thickness:: 2-Ply Applications:: General Lifting Purposes, Including Raising, Lowering, Or Suspending Loads
Vertical Capacity: 2400lb
High Light:

webbing sling belt

,

polyester lifting belts

Polyester Slings Light Duty Slings serial number identification serial number identification


Product Description

Meet or exceed US standard ASMEB30.9
Class 7 webbing possessing a minimum certified tensile strength of 9800LBS/in width
Low strain ,wear -resistance,long life material (100% PES)
Safety factor 5:1



Eye-Eye Sling (Type 3 and 4)
Plies of Web Model Wed Width (in.) Eye Length (in.) Rated Capacity (lbs.) base Length(ft)
Vertical
Chocker
Vertical Basket
One Ply SEE1-1 1 8-1/2 1200 960 2400 3
SEE1-2 2 10 2400 1920 4800 3
SEE1-3 3 11 3600 2880 7200 3
SEE1-4 4 12 4800 3840 9600 3
SEE1-5 5 14 6000 4800 12000 3
SEE1-6 6 16 7200 5760 14400 3
Two Ply SEE2-1 1 8-1/2 2400 2560 4800 3
SEE2-2 2 10 4800 3840 9600 3
SEE2-3 3 11 6500 5200 13000 3
SEE2-4 4 12 8600 6880 17200 3
SEE2-5 5 14 10200 8160 20400 3
SEE2-6 6 16 12300 9840 24600 3



Light Duty Flat Lifting Slings Industrial Lifting Belt 4800 Lb Basket Capacity 0

CAUTIONS:
- Do not attempt to use sling above rated lifting capacity.
- When selecting a sling,it is very important to consider the angles at which the sling will be used.
- Slings are subject to cutting when ifting items with sharp egeds.In this case,always use protective sleeves
- Do not use a damaged sling,and se only if trained.
- Do not tie knots in sling webbing as strength is greatly reduced.
- Never drag a sling beneth from a load which is resting on it.
- Chemical active environments can affect the strength of slings
- Inspect slings weekly or more frequently depending on the sling use conditions.
- Always strore slings in a cool,dry and dark place to extend the working lift.
- Always read and understand the operating instructions before use.
- Failure to comply with this warning may result in serious load damageand death or injury.







Light Duty Flat Lifting Slings Industrial Lifting Belt 4800 Lb Basket Capacity 1
