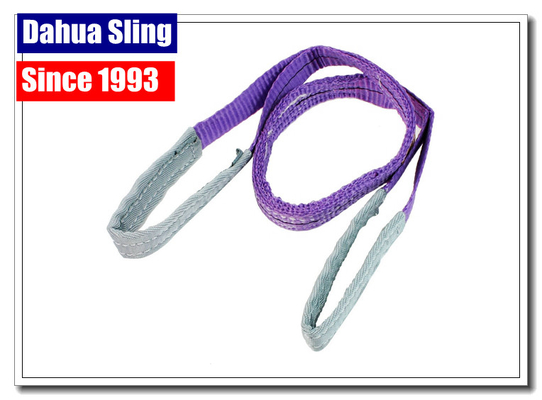

Purple 1 Inch Synthetic Web Slings , 1 Ton Crane Rigging Slings With Flat Folded Eye

China Purple 1 Inch Synthetic Web Slings , 1 Ton Crane Rigging Slings With Flat Folded Eye supplier
Purple 1 Inch Synthetic Web Slings , 1 Ton Crane Rigging Slings With Flat Folded Eye supplier Purple 1 Inch Synthetic Web Slings , 1 Ton Crane Rigging Slings With Flat Folded Eye supplier

Large Image :  Purple 1 Inch Synthetic Web Slings , 1 Ton Crane Rigging Slings With Flat Folded Eye

Product Details:

Place of Origin: China
Brand Name: Dahua Sling
Certification: CE TUV/GS
Model Number: eye eye webbing sling

Payment & Shipping Terms:

Minimum Order Quantity: 1000 pcs
Price: USD 30,000 / 20'GP
Contact Now
Detailed Product Description
Individual Certificates: Provide Each Sling Logo: We Do It Oursleves
Eye Protector: White Black Or Same As Webbing Eye Type: Flat Folded
Material: 100 % Polyester Safety Factor: 7:1
Layer:: Single-layer, Double-layer Width:: 25mm Or 30mm
Standard: EN 1492-1 Lifting Capacity: 1000kg

1 ton lifting strap 1 inch synthetic flat webbing slings purple Polyester flat web lifting sling double ply EN 1492-1 Eu



1. Product Summary
Flat Webbing Sling is woven with machine for one time, and processed in the different sewing methods, it can be used the strengthened eye on its ends to improve its strength. Its standard tonnage can be distinguished through the color, and the wide and smooth loading surface especially applies to the articles with the soft surface and if necessary, the protective sleeve which is wider than sling can be used. Because of no contacting metal, it causes hardly damage to the loaded article surface processed with lacquer. Flat woven webbing sling made from polyester can not cause sparkle if it is used under the hazardous and explosive environment. In addition, its low extending property can decrease the bound of load in the courses of lifting, and avoid damage from the shocking strength. At the same time, make codes for the dyeing colors of sling and suggest the simple and correct methods for loading, which is well convenient for our lifting user.


2. Technical Data
Material: polyester polypropylene
Safe Factor: 5:1 6:1 7:1 8:1
Standard : ISO4878 EN1492-1:2000 JB/T8521-2000
Length: as required
Color: color code
Ply: single. Double. three and four-ply



3. Type
A. Eye and Eye Flat Webbing Sling
a, Single-ply Eye and Eye Flat Webbing Sling
b, Double-ply Eye and Eye Flat Webbing Sling
c, Three-ply Eye and Eye Flat Webbing Sling
d, Four-ply Eye and Eye Flat Webbing Sling
Remark: Sling eye is divided into flat eye, reverse eye, eye folded 1/2 from one side, eye folded 1/2 from two sides and eye folded 1/3.





Full company name Nanjing dahua special belt knit Co., Ltd
Register date: 1993-01-01
Business License No. 91320100608919015B
Tax No. 320112608919015
Export License Registration No.: 0305519
ISO9001 No. TUV Rheinland [01100038901]
GS No. TUV Rheinland [S502223800001] [S50222380 0002]
Factory Self-owned for 25 years (since 1993)
Workers 187 workers, 60% with 10+ years experience
Export volume yearly 1200 Tons Ratchet Tie Downs
Total Building Size: 24000 Square meters
Office Size: 3800 Square meters
Address: No.2 Changsheng Road, Getang, Nanjing, China 210048
Website: www.dahua-sling.com

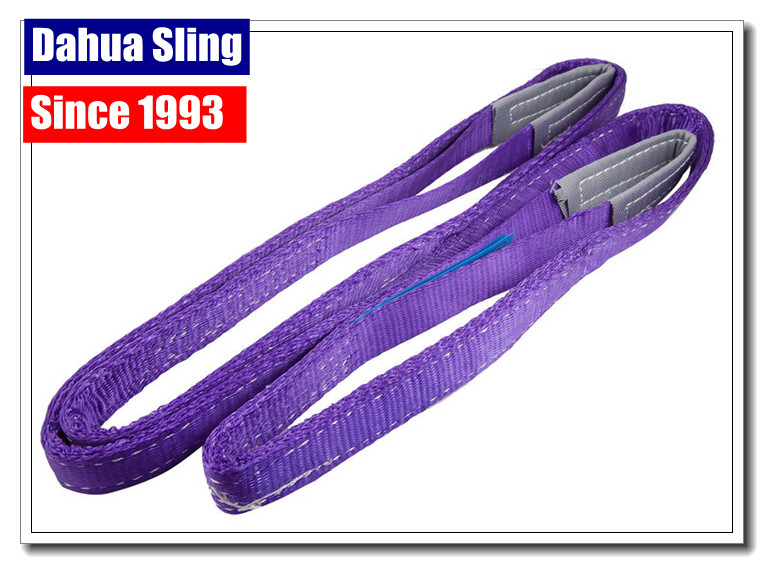

Eye-Eye webbing sling is made from high tenacity 100% polyester webbing with reinforced eye loops at both ends.It can be made from one layer to four layers, which we usually call Simplex webbing sling, Duplex webbing sling, Triplex webbing sling and Quadraplex. And the eyes can be made into Flat eyes, Twisted eyes and Reversed eyes. Eye-eye webbing slings are versatile as they can be used in choker, vertical, or basket hitches.Polyester fabric has low elongation, so it’s better able to hold the load without the risk of shocking.OEM service is also available.


1T WEBBING SLING Modelo Color Safety factor Widthmm) M.B.S(kg)
Purple 1 Inch Synthetic Web Slings , 1 Ton Crane Rigging Slings With Flat Folded Eye

5DEE010

Purple 5:1 25 5T
6DEE010 Purple 6:1 25/38 6T
7DEE010 Purple 7:1 30/50/60 7T
8DEE010 Purple 8:1 50 8T





2T WEBBING SLING Modelo Color Safety factor Widthmm) M.B.S(kg)
Purple 1 Inch Synthetic Web Slings , 1 Ton Crane Rigging Slings With Flat Folded Eye 5DEE020 Green 5:1 50 10T
6DEE020 Green 6:1 50 12T
7DEE020 Green 7:1 50/60 14T
8DEE020 Green 8:1 65 16T



3T WEBBING SLING Modelo Color Safety factor Widthmm) M.B.S
Purple 1 Inch Synthetic Web Slings , 1 Ton Crane Rigging Slings With Flat Folded Eye 5DEE030 Yellow 5:1 75 15T
6DEE030 Yellow 6:1 75 18T
7DEE030 Yellow 7:1 75/90 21T
8DEE030 Yellow 8:1 95 24T



4T WEBBING SLING Modelo Color Safety factor Widthmm) M.B.S
Purple 1 Inch Synthetic Web Slings , 1 Ton Crane Rigging Slings With Flat Folded Eye 5DEE040 Grey 5 100 20T
6DEE040 Grey 6 100 24T
7DEE040 Grey 7 100/120 28T
8DEE040 Grey 8 120 32T



5T WEBBING SLING Modelo Color Safety factor Widthmm) M.B.S(kg)
Purple 1 Inch Synthetic Web Slings , 1 Ton Crane Rigging Slings With Flat Folded Eye 5DEE050 Red 5:1 125 25T
6DEE050 Red 6:1 125 30T
7DEE050 Red 7:1 125/150 35T
8DEE050 Red 8:1 150 40T



6T WEBBING SLING Modelo Color Safety factor Widthmm)) M.B.S(kg)
Purple 1 Inch Synthetic Web Slings , 1 Ton Crane Rigging Slings With Flat Folded Eye 5DEE060 Brown 5:1 150 30T
6DEE060 Brown 6:1 150 36T
7DEE060 Brown 7:1 150/180 42T
8DEE060 Brown 8:1 180 48T



8T WEBBING SLING Modelo Color Safety factor Widthmm) M.B.S
Purple 1 Inch Synthetic Web Slings , 1 Ton Crane Rigging Slings With Flat Folded Eye 5DEE080 Blue 5:1 200 40T
6DEE080 Blue 6:1 200 48T
7DEE080 Blue 7:1 200/240 56T
8DEE080 Blue 8:1 240 64T



10T WEBBING SLING Modelo Color Safety factor Widthmm) M.B.S
Purple 1 Inch Synthetic Web Slings , 1 Ton Crane Rigging Slings With Flat Folded Eye 5DEE100 Orange 5:1 250 50T
6DEE100 Orange 6:1 250 60T
7DEE100 Orange 7:1 250/300 70T
8DEE100 Orange 8:1 300 80T




CAUTIONS:

- Do not attempt to use sling above rated lifting capacity.
- When selecting a sling,it is very important to consider the angles at which the sling will be used.
- Slings are subject to cutting when ifting items with sharp egeds.In this case,always use protective sleeves
- Do not use a damaged sling,and se only if trained.
- Do not tie knots in sling webbing as strength is greatly reduced.
- Never drag a sling beneth from a load which is resting on it.
- Chemical active environments can affect the strength of slings
- Inspect slings weekly or more frequently depending on the sling use conditions.
- Always strore slings in a cool,dry and dark place to extend the working lift.
- Always read and understand the operating instructions before use.
- Failure to comply with this warning may result in serious load damageand death or injury.





When using flat woven webbing slings always:

• Store and handle belt slings correctly.

• Inspect belt slings and accessories before use and before placing into storage.

• Follow safe slinging practices, as given overleaf.

• Position the bight for choke lift at 120° (natural angle).

• Position the sling so that the load is uniformly spread over its width and protect the sling from sharp edges.

• Apply the correct mode factor for the slinging arrangement.





When using flat woven webbing slings never:

• Attempt to shorten, knot or tie belt slings.

• Expose belt slings to direct heat or flames.

• Use belt slings at temperatures above 80°C or below 0°C without consulting the supplier.

• Expose belt slings to chemicals without consulting the supplier.

• Shock load belt slings.

• Use belt slings which are cut or which have loose or damaged stitching





Selecting the Correct Sling

Belt slings are available in a range of materials and sizes in single leg and endless sling forms. Select the slings to

be used and plan the lift taking the following into account:





Material

Polyester is resistant to moderate strength acids but is damaged by alkalis; polyamide (Nylon) is virtually immune to

alkalis but is damaged by acids; and polypropylene is little affected by acids or alkalis but is damaged by some

solvents, tars and paints.



Capacity

The sling must be both long enough and strong enough for the load and the slinging method. Apply the mode factor

for the slinging method. For use at temperatures exceeding 80°C or below 0°C refer to the suppliers instructions. If

the slings are used in multi-leg arrangement the angle formed between the legs should not be less than 30° or

greater than 90°. If abrasion, heat generated by friction or cutting from edges or corners are likely, select a sling

fitted with protective sleeves and/or use suitable packing.





Storing and Handling Belt Slings

Never return wet, damaged or contaminated slings to storage. They should be cleaned with clear water and dried

naturally. Never force dry belt slings. Store belt slings hung from non-rusting pegs which allow the free circulation of

air. The storage area should be dry, clean, free of any contaminates and shaded from direct sunlight. Do not alter,

modify or repair a belt sling but refer such matters to a Competent Person.

NOTE: The material from which the sling is manufactured may be identified by the colour of the label or printing on

the label: Polyester = Blue, Polyamide (Nylon) = Green, Polypropylene = Brown and the sling may also be dyed with

a colour code to indicate SWL.





Using Belt Slings Safely

Do not attempt lifting operations unless you understand the use of the equipment, the slinging procedures and the

mode factors to be applied. Do not use defective slings or accessories. Check the correct engagement with fittings

and appliances, ensure smooth radii are formed, do not twist or cross slings and do not overcrowd fittings. Position

the sling so that the load is uniformly spread over its width. Position the bight for a choke lift at the natural (120°)

angle to prevent friction being generated. Ensure that stitching is in the standing part of the sling away from hooks

and other fittings. Take the load steadily and avoid shock loads. Do not leave suspended loads unattended. In an

emergency cordon off the area.





In-service Inspection, Maintenance and Replacement



Inspect slings each day before use, looking for:

  • Missing or unreadable ID tag
  • Melted, charred or weld-splattered areas
  • Acid or alkali burns
  • Holes, tears, cuts, snags or embedded particles
  • Broken or worn stitching
  • Excessive abrasive wear or elongation
  • Knots or brittle areas
  • Broken, corroded, pitted distorted fittings

Do not use worn or damaged slings or attachments. Discard or repair them. Use damaged slings only after they are repaired, reconditioned, and proof tested by the sling manufacturer or a qualified person. Keep certificates of proof test.



Maintenance requirements are minimal. Belt slings may be cleaned with clear water. Remember weak chemical

solutions will become increasingly stronger by evaporation. Regularly inspect belt slings and, in the event of the

following defects, refer the sling to a Competent Person for thorough examination: illegible markings; damaged,

chaffed or cut webbing; damaged or loose stitching; heat damage; burns; chemical damage; solar degradation;

damaged or deformed end fittings.



Purple 1 Inch Synthetic Web Slings , 1 Ton Crane Rigging Slings With Flat Folded Eye
