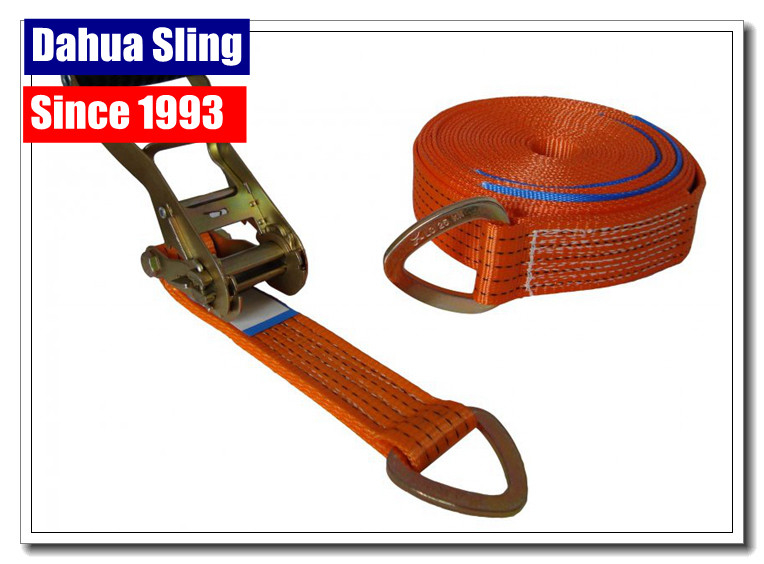

8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing

8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing

  • 8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing
8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing
Product Details:
Place of Origin: Jiangsu China
Brand Name: DAHUA SLING
Certification: CE GS ISO
Model Number: RATCHET TIE DOWN
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: USD
Packaging Details: poly bag, carton and pallet
Delivery Time: 15-40 days for one container
Supply Ability: 500 containers / year
Contact Now
Detailed Product Description
Length: 27ft, 30ft.... Or As Required Color: Yellow
Temperature Range:: -40℃ -100℃ Material Of Ratchet Buckle:: Carbon Steel Or Stainless Steel.
Material Of Webbing:: 100% Polyester Ratchet: 2 Inches
Webbing: 2 Inches Polyester Hooks: D Ring
HS Code:: 5609000000 Size:: 8 Meter
Capacity: 10,000-Lb. Capacity
High Light:

vehicle tie down straps

,

trailer ratchet straps

5000kg x 8m Ratchet Strap D Ring

Description

Heavy duty ratchet strap with high tenacity polyester webbing and D ring end fittings. I

deal for securing heavy loads in transit.

  • 5 tonne breaking strength
  • D ring end fittings
  • 2 blue polyester wear sleeves included
  • Ergonomic handle
  • One hand tensioning
  • Quick and easy release by opening the handle fully
  • Flexible high tenacity polyester webbing adapts to any shaped load


Minimum break strength: 5000kg

Rated assembly strength: 2500kg

Conformity: BS EN 12195 - 2001

Webbing: 50mm wide orange high tenacity polyester

End fittings: Zinc plated steel D ring

Fixed length: 0.3m

Adjustable length: 7.5m

Ratchet mechanism material: Zinc plated steel

2 wear sleeves: 0.25m Anti-abrasion blue polyester




Standards


With the wide variety of tie strap, ratchets and cam buckles US Cargo Control offers, you can rest assured our products are extensively tested for safe use. All of our ratchet straps have labels with working load limit information and most meet several requirements and guidelines, including:
Commercial Vehicle Safety Alliance (CVSA) guidelines
Department of Transportation (DOT) regulations
Web Sling & Tie Down Association (WSTDA)
North American Cargo Securement
We've outlined our most common ratchet strap products below, but keep in mind that custom straps are always an option. Our product specialists can help with any questions you have and can also assist you in placing an order. Call 0086 17705184612.







Material: Polyester Nylon

Manufactured to EN 12195-2 AS/NZS 4380 ASME B30.9

Working length: As specified

Temperature range: -40℃ -100℃

Safety factor: 2:1 or 3:1

Warning:
1. Ratchet lashings should not be used as
a load lifting gear.
2. Ratchet lashings must not beoverload.
3. Avoid twisted positioning of the ratchet
lashing.
4. Do not tie knots in the webbing.

8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 0
Ratchet lashing are used for fixation cargo while transporting, shifting or moving, storage. After
locking, no relax during transportation, safety, saving, light, easy to use, and no damage for cargo.
How to order

8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 1
RTD Double “J”

8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 2
8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 3
Stock. No
M.B.S.(kg)
Webbing Width(mm)
B.L.(kg)
LC(kg)
RTD25-040
800
25
1200
400
RTD25-050
1000
25
1500
500
RTD35-075
1500
35
2250
750
RTD35-100
2000
35
3000
1000
RTD35-150
3000
35
4500
1500
RTD50-200
4000
50
6000
2000
RTD50-250
5000
50
7500
2500
RTD75-350
7000
75
10500
3500
RTD100-500
10000
100
15000
5000
RTF Flat Hook

8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 4
8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 5
Stock. No
M.B.S.(kg)
Webbing Width(mm)
B.L.(kg)
LC(kg)
RTF50-200
4000
50
6000
2000
RTF50-250
5000
50
7500
2500
RTF75-350
7000
75
10500
3500
RTF100-500
10000
100
15000
5000
RTS “S” Hook

8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 2
8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 7
Stock. No
M.B.S.(kg)
Webbing Width(mm)
B.L.(kg)
LC(kg)
RTS25-040
800
25
1200
400
RTS25-050
1000
25
1500
500
RTS35-075
1500
35
2250
750
RTS35-100
2000
35
3000
1000
RTC Claw Hook

8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 2
8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 9
Stock. No
M.B.S.(kg)
Webbing Width(mm)
B.L.(kg)
LC(kg)
RTC35-075
1500
35
2250
750
RTC35-100
2000
35
3000
1000
RTC35-150
3000
35
4500
1500
RTC50-200
4000
50
6000
2000
RTC50-250
5000
50
7500
2500
RTC75-350
7000
75
10500
3500
RTC100-500
10000
100
15000
5000
RTB Belt

8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 2
8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 11
Stock. No
M.B.S.(kg)
Webbing Width(mm)
B.L.(kg)
LC(kg)
RTB25-050
1000
25
1500
500
RTB35-075
1500
35
2250
750
RTB35-100
2000
35
3000
1000
RTB35-150
3000
35
4500
1500
RTB50-200
4000
50
6000
2000
RTB50-250
5000
50
7500
2500
RTB75-350
7000
75
10500
3500
RTB100-500
10000
100
15000
5000
RTR Ring

8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 2
8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 13
Stock. No
M.B.S.(kg)
Webbing Width(mm)
B.L.(kg)
LC(kg)
RTR25-050
1000
25
1500
500
RTR35-100
2000
35
3000
1000
RTR50-250
5000
50
7500
2500
RTR75-350
7000
75
10500
3500
RTR100-500
10000
100
15000
5000
8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 14
8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 15
8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 16
8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 17   8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 18   8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 19

8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 20









1" ratchet straps are available with S-hooks, J-hooks and D-rings, flat snap hooks, spring action buckle straps, and more. An endless cam buckle strap is also available, which makes a great perimeter strap, meaning the strap is wrapped around an object and fed back into the buckle or ratchet to secure. Webbing material for our 1" straps is industrial grade for heavy-duty use.
2" Ratchet Straps

2" ratchet straps are not only used with E-track but are commonly used for flatbed trucks and trailers as well as for hauling vehicles. We have 2" ratchet straps with wire hooks, flat hooks, snap hooks, chain extensions and many other fittings. If you don't see what you need just give us a call and we will do our best to find the strap that fits your needs.
3" Ratchet Straps

3" ratchet straps are also available and provide break strengths of 15,000 pounds. These heavy-duty ratchet straps are made for the heaviest applications and only high-quality hardware is used. These ratchet straps are available with chain extensions and either flat hooks or double-J hooks, and are also available in custom lengths for cargo strapping systems. Don't forget to check out our CORDURA® wear sleeves for webbing. This tough fabric offers a layer of durable protection to webbing, to extend the life of the ratchet strap. We offer these handy sleeves in 1", 2", 3" and 4" widths.
4" Ratchet Straps

4" ratchet straps are also available and provide break strengths of 15,000 pounds and over, and are available with chain extensions. Although we feature only straps and ratchets in lengths of 27' and 30', custom lengths are available upon request.

8 Meter D Ring Cargo Ratchet Tie Down Straps 2 Inch Polyester Webbing 21
