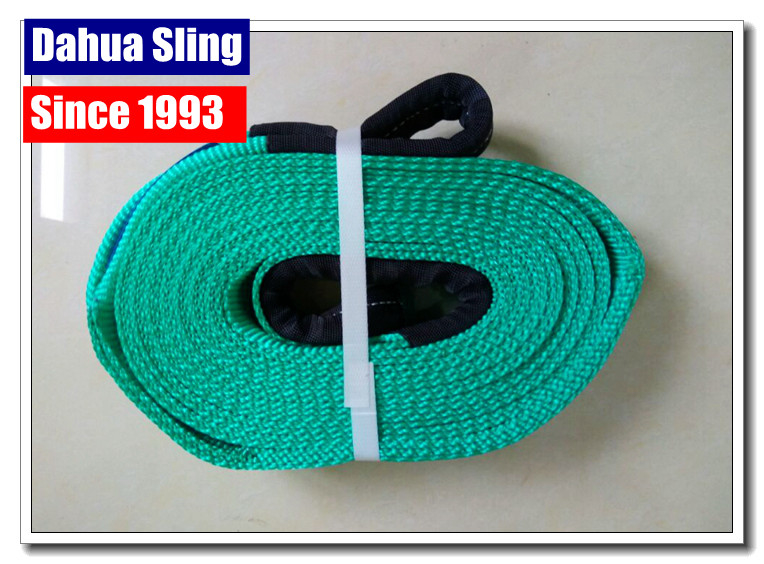

10000kg Flat Web Polyester Lifting Slings Belt With Reinforced Eyes

10000kg Flat Web Polyester Lifting Slings Belt With Reinforced Eyes

10000kg Flat Web Polyester Lifting Slings  Belt With Reinforced Eyes

Product Details:

Place of Origin: CHINA
Brand Name: Dahua Sling
Certification: CE GS ISO
Model Number: eye eye sling 1tonne

Payment & Shipping Terms:

Minimum Order Quantity: 1000 pcs
Price: 8
Packaging Details: Package: Shrink Wrap, carton and pallet
Delivery Time: 20-30 days for one container
Supply Ability: 5 containers per month
Contact Now
Detailed Product Description
Material: 100% High Tenacity Polyester Yarn W.L.L: 1000kg To 20,000kg
Size: 300mm Width, Length As Request Logo Printing: We Do It Oursleves
Eye Protector: Available Standard: BS EN 1492-1
Lifting Sling Packing: Each Sling Packed In Shrink Film And Two White Packing Strips Sling Marking Line: One Black Line For 1 Ton, 2 Black Line For Two Tons

10000kg Flat Web Polyester Lifting Slings Belt With Reinforced Eyes





Lifting sling packing info


WEBBING FOR SAFETY FACTOR 7:1 EN1492-1:2008
SKU SPEC CTN SIZE QTY/CTN N.W G.W
FS-E7DEE100-3 10000KG*3m 55*36.5*30cm 4 26 26.84
FS-E7DEE100-4 10000KG*4m 55*36.5*30cm 4 35.16 36
FS-E7DEE100-5 10000KG*5m 55*36.5*30cm 2 24.08 24.92
FS-E7DEE100-6 10000KG*6m 55*36.5*30cm 2 26.4 27.24
FS-E7DEE100-8 10000KG*8m 55*36.5*30cm 1 16.12 16.96
FS-E7DEE100-10 10000KG*10m 55*36.5*30cm 1 20.41 21.25
FS-E7DEE100-12 10000KG*12m 55*36.5*30cm 1 24.59

25.43





Sling Capacities and Colour Codes

Duplex Flat Webbing Slings.
Colour Code.
Webbing Width Approx Weight (g/m) Straight Choked Basket Basket at 45 degrees Basket at 90 degrees
Straight x WLL (kg) Choked x 0.8 WLL (kg) Basket x 2 WLL (kg) 45 degree basket x 1.8 WLL (kg) 90 degree basket x 1.4 WLL (kg)
Violet (purple) 30mm 150 1000 800 2000 1800 1400
Green 60mm 300 2000 1600 4000 3600 2800
Yellow 90mm 450 3000 2400 6000 5400 4200
Grey 120mm 620 4000 3200 8000 7200 5600
Red 150mm 780 5000 4000 10000 9000 7000
Brown 180mm 1030 6000 4800 12000 10800 8400
Blue 240mm 1370 8000 6400 16000 14400 11200
Orange 300mm 1720 10000 8000 20000 18000 14000
Orange 300mm - 12000 6900 24000 21600 16800
Orange 240mm - 16000 12800 32000 28800 22400
Orange 300mm - 20000 16000 40000 36000 2800



Material


Polyester:PE
Used mainly where acid conditions are present or minimum stretch is desired,polyester is unaffected by common acid and hot bleaching agents,it is not suitable for use with concentrated sulfuric acid,alkaline or at temperature in excess of 100'C or less than -40'C,stretch at rated capacity is approximately 3%





ADVANTAGE:

  • SGS system and CE approved
  • Top Quality to America market and European markets
  • TUV/GS approved quality
  • Competitive Price
  • Long Time Cooperation
  • 20 customers are sourcing from us for 12 years
  • Quick Shipment
  • Sincere and Efficient work 24-Hours
  • Quick shipment within 20 days to 35 days
  • Produced according to customer's drawing and sample
  • 10 new items developed per month



WARNING:

1. The slings should avoid the harm of the sharp instrument when lifting the goods.

2. You can add the leather or polyester on the outer layer of the slings to protect it when lifting the goods .

3. Never use slings with damages or defects.

4. Forbidden to tie a knot of the sling or link with a knot. You should link the sling with the right connecting piece.

5. Only use slings with clear identifications.

6. Before use,check working load limit, length and working position.

7. Never use slings under -40°C Or more than 100°C .

8. Elongation rate <3% at working load <10% at breaking load.





100% Polyester Lifting Webbing Material

10000kg Flat Web Polyester Lifting Slings  Belt With Reinforced Eyes
