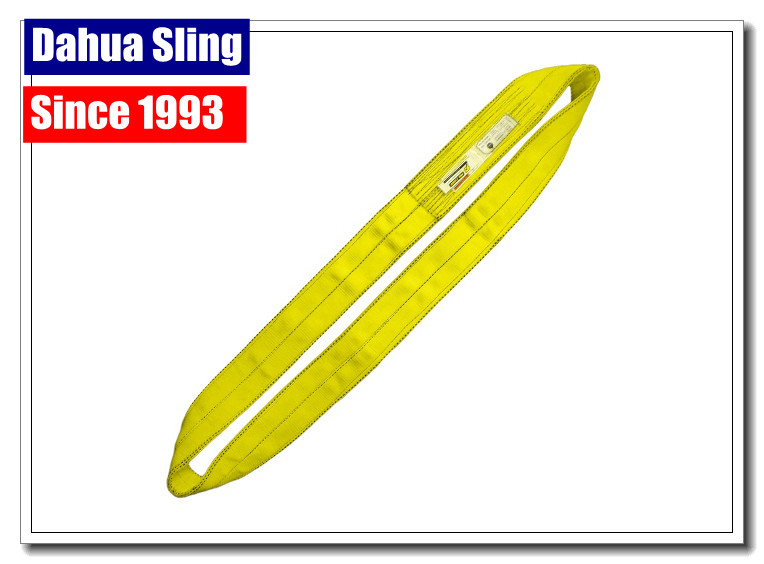

High Tenacity Yellow Endless Lifting Slings 3000KG Working Load Rainproof

China High Tenacity Yellow Endless Lifting Slings 3000KG Working Load Rainproof supplier

Large Image :  High Tenacity Yellow Endless Lifting Slings 3000KG Working Load Rainproof

Product Details:

Place of Origin: China
Brand Name: Dahua Sling
Certification: BS EN 1492-1:2000
Model Number: web sling

Payment & Shipping Terms:

Minimum Order Quantity: 1000 pcs
Price: USD 30,000 / 20'GP
Contact Now
Detailed Product Description
Logo: We Do It Oursleves Eye Protector: White Black Or Same As Webbing
Material: 100 % Polyester Layer:: 1 Layer
Packing: Blank Or Printed Sling Type: Endless Flat Webbing Sling
W.L.L: 3000KG COLOR: Yellow
Standard: BS EN 1492-1:2000

Polyester Endless Lifting Sling/Belt, Webbing Sling



EN 1492-1 endless sling Lifting Belt Polyester Sling

Material 100% high tenacity industrial polyester yarn
Color Violet, Green, Yellow, Grey, Red, Brown, Blue, Orange
Working Load From 1 ton to 24 tons
Ply Double
Eyes With reinforced lifting eyes
Length 1m to 12m or customized
Elongation <= 7%
Standard EN1492-1+A1:2008
Safety Factor 4:1, 5:1, 6:1, 7:1

Specimin Test Results

  • Product Type: One Way Sling
  • Webbing type: Polyester Seat Belt
  • Webbing Width: 48mm
  • Test Name: Tensile Test
  • Test Type: Tensile
  • Test Date: 08/03/2007 16:43
  • Test Speed: 100.00mm/min
  • Pretension: 0.050 N
  • Sample Length: 1000.000mm
  • Force at Peak (kN) = 43.910
  • Elongation at Break (mm) = 80.602
  • Time to Failure (Secs) = 48.280



High Tenacity Yellow Endless Lifting Slings 3000KG Working Load Rainproof



High Tenacity Yellow Endless Lifting Slings 3000KG Working Load Rainproof



We fabricate inexpensive one way industrial cargo webbing strap (also known as 1-way strap) for bundling, large-carton packaging, and other throw-away single use applications using polyester seatbelt webbing material. Just call us now and we will gladly tell you about our inventory, pricing,



You can use it to efficiently move and bundle materials during the production cycle. Yet this cargo strap solution is cheap enough to send along with each shipment making it easier for your customers at the other end! This lifting strap or sling is used to safely move your valuable units in the factory and to lower it into a protective shipping form for safe delivery. The strap then travels with the product for easy removal by the customer.



Our endless lifting slings are popular in the steel tube and timber industries. Being endless, each lift bears on a different part of the webbing. Re-useable lifting slings are manufactured to the same EU standards as Duplex and Simplex lifting slings and are colour coded likewise.



Duplex (double thickness) endless lifting slings are also available.

One-way lifting slings for pre-slinging are available but with a 5:1 safety factor for use outside of the E.U only.



Other materials such as Nylon or Polypropylene are available for special applications.

Basic lifting slings are either Duplex (double thickness) or Simplex (single thickness) or in endless form either Simplex or Duplex.

Manufactured to the latest European standards (BS EN 1492-1) all slings within that range are colour coded for easy S.W.L. identification.



We recommend the use of wear sleeves to prolong the life of these lifting slings. Specialised Cargo Nets are also available constructed from webbing using the same 7:1 safety factor.

Also available with metal end fittings.



                                     www. dahua-sling.com



Flat Endless Polyester Webbing Slings of different capacitiy (SWL), upon customer request, also with different safety factors and width, individual labels and custom printing.

We can print your logo or your text on the sling.

Endless Slings are one of the most versatile and widely used slings, they can be used in all three types of hitches. Sling life is prolonged because of rotation of the wear surfaces.

We also manufacture webbing slings to DIN 60005 norm.

CAUTIONS:

- Do not attempt to use sling above rated lifting capacity.
- When selecting a sling,it is very important to consider the angles at which the sling will be used.
- Slings are subject to cutting when ifting items with sharp egeds.In this case,always use protective sleeves
- Do not use a damaged sling,and se only if trained.
- Do not tie knots in sling webbing as strength is greatly reduced.
- Never drag a sling beneth from a load which is resting on it.
- Chemical active environments can affect the strength of slings
- Inspect slings weekly or more frequently depending on the sling use conditions.
- Always strore slings in a cool,dry and dark place to extend the working lift.
- Always read and understand the operating instructions before use.
- Failure to comply with this warning may result in serious load damageand death or injury.



Selecting the Correct Sling
Belt slings are available in a range of materials and sizes in single leg and endless sling forms. Select the slings to
be used and plan the lift taking the following into account:


Material
Polyester is resistant to moderate strength acids but is damaged by alkalis; polyamide (Nylon) is virtually immune to
alkalis but is damaged by acids; and polypropylene is little affected by acids or alkalis but is damaged by some
solvents, tars and paints.

Capacity
The sling must be both long enough and strong enough for the load and the slinging method. Apply the mode factor
for the slinging method. For use at temperatures exceeding 80°C or below 0°C refer to the suppliers instructions. If
the slings are used in multi-leg arrangement the angle formed between the legs should not be less than 30° or
greater than 90°. If abrasion, heat generated by friction or cutting from edges or corners are likely, select a sling
fitted with protective sleeves and/or use suitable packing.


Storing and Handling Belt Slings
Never return wet, damaged or contaminated slings to storage. They should be cleaned with clear water and dried
naturally. Never force dry belt slings. Store belt slings hung from non-rusting pegs which allow the free circulation of
air. The storage area should be dry, clean, free of any contaminates and shaded from direct sunlight. Do not alter,
modify or repair a belt sling but refer such matters to a Competent Person.
NOTE: The material from which the sling is manufactured may be identified by the colour of the label or printing on
the label: Polyester = Blue, Polyamide (Nylon) = Green, Polypropylene = Brown and the sling may also be dyed with
a colour code to indicate SWL.


Using Belt Slings Safely
Do not attempt lifting operations unless you understand the use of the equipment, the slinging procedures and the
mode factors to be applied. Do not use defective slings or accessories. Check the correct engagement with fittings
and appliances, ensure smooth radii are formed, do not twist or cross slings and do not overcrowd fittings. Position
the sling so that the load is uniformly spread over its width. Position the bight for a choke lift at the natural (120°)
angle to prevent friction being generated. Ensure that stitching is in the standing part of the sling away from hooks
and other fittings. Take the load steadily and avoid shock loads. Do not leave suspended loads unattended. In an
emergency cordon off the area.


In-service Inspection, Maintenance and Replacement

Inspect slings each day before use, looking for:

  • Missing or unreadable ID tag
  • Melted, charred or weld-splattered areas
  • Acid or alkali burns
  • Holes, tears, cuts, snags or embedded particles
  • Broken or worn stitching
  • Excessive abrasive wear or elongation
  • Knots or brittle areas
  • Broken, corroded, pitted distorted fittings

Do not use worn or damaged slings or attachments. Discard or repair them. Use damaged slings only after they are repaired, reconditioned, and proof tested by the sling manufacturer or a qualified person. Keep certificates of proof test.

Maintenance requirements are minimal. Belt slings may be cleaned with clear water. Remember weak chemical
solutions will become increasingly stronger by evaporation. Regularly inspect belt slings and, in the event of the
following defects, refer the sling to a Competent Person for thorough examination: illegible markings; damaged,
chaffed or cut webbing; damaged or loose stitching; heat damage; burns; chemical damage; solar degradation;
damaged or deformed end fittings.
