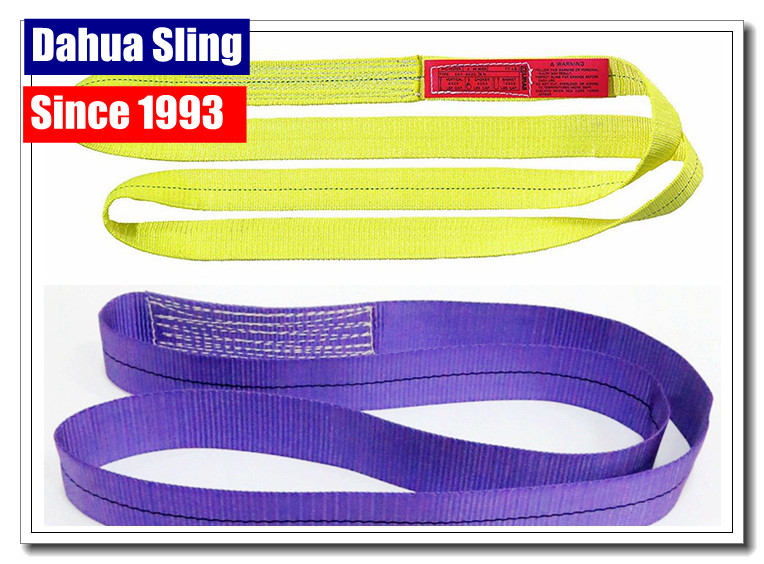

2500 Lbs Choker Endless Lifting Slings Synthetic Rigging Crane Lifting Belt

2500 Lbs Choker Endless Lifting Slings Synthetic Rigging Crane Lifting Belt

2500 Lbs Choker Endless Lifting Slings Synthetic Rigging Crane Lifting Belt

Product Details:

Place of Origin: China
Brand Name: Dahua Sling
Certification: BS EN 1492-1:2000
Model Number: web sling

Payment & Shipping Terms:

Minimum Order Quantity: 1000 pcs
Price: USD 30,000 / 20'GP
Contact Now
Detailed Product Description
Logo: Logo Printed Endless Sling Eye Protector: White Black Or Same As Webbing
Material: 100 % Polyester One Way Lifting Sling Layer:: 1 Layer Endless Sling
Packing: Blank Or Printed Endless Sling Sling Type: Endless Flat Webbing Sling
W.L.L: Vertical : 3200 Lbs COLOR: Yellow
Standard: BS EN 1492-1:2000 Choker;: 2500 Lbs
Basket:: 6400 Lbs

NEW EN 1x09' Endless Flat Sling, Synthetic Rigging Crane Lifting Belt





Endless Nylon Sling: 1 Ply - 1 Inch Wide - 3 Feet'

This flat 1" wide and 1 ply endless nylon sling can be used in all three types of hitches. This yellow 1 ply 1 inch wide nylon endless lifting sling is available in 2 foot increments, from 4 feet to 20 feet in length. Vertical, choker, and basket hitch load capacities are listed below.



Specs: Dahua Sling 1" Wide x 3 Feet Endless Nylon Sling 1 Ply

  • Sling Type: Endless

  • Width: 1"

  • Number of Plies: 1

  • Length: 3 ft (other lenghts available upon request. Email us for a Addtional info)

  • Vertical Hitch Capacity: 3,200 lb.

  • Choker Hitch Capacity: 2,500 lb.

  • Basket Hitch Capacity: 6,400 lb.

  • Material: Nylon

  • Web Grade: Heavy-Duty

  • Color: Yellow





Endless Nylon Sling: 1 Ply - 2 Inches Wide - 3 Feet

This flat 2" wide and 1 ply endless nylon sling can be used in all three types of hitches. This yellow 2 inch wide nylon endless lifting sling is available in 2 foot increments, from 4 feet to 20 feet in length. Vertical, choker, and basket hitch load capacities are listed below.



Specs: Stren-Flex 2" Wide x 3 Feet Endless Nylon Sling 1 Ply:

  • Sling Type: Endless

  • Width: 2"

  • Number of Plies: 1

  • Length: 3 ft (other lenghts available upon request. Email Us for a Addtional info)

  • Vertical Hitch Capacity: 6,400 lb.

  • Choker Hitch Capacity: 5,000 lb.

  • Basket Hitch Capacity: 12,800 lb.

  • Material: Nylon

  • Web Grade: Heavy-Duty

  • Color: Yellow

Endless Nylon Sling: 1 Ply - 3 Inches Wide - 3 Feet

This flat 3" wide and 1 ply endless nylon sling can be used in all three types of hitches. This yellow 3 inch wide nylon endless lifting sling is available in 2 foot increments, from 4 feet to 20 feet in length. Vertical, choker, and basket hitch load capacities are listed below.



Specs: Stren-Flex 3" x 3 Feet Endless Nylon Sling 1 Ply

  • Sling Type: Endless

  • Width: 3"

  • Number of Plies: 1

  • Length: 3 ft (other lenghts available upon request. Email Us for a Addtional info)

  • Vertical Hitch Capacity: 8,600 lb.

  • Choker Hitch Capacity: 6,900 lb.

  • Basket Hitch Capacity: 17,200 lb.

  • Material: Nylon

  • Web Grade: Heavy-Duty

  • Color: Yellow

Endless Nylon Sling: 1 Ply - 4 inches wide - 3 Feet

This flat 4" wide and 1 ply endless nylon sling can be used in all three types of hitches. This yellow 4 inch wide nylon endless lifting sling is available in 2 foot increments, from 4 feet to 20 feet in length. Vertical, choker, and basket hitch load capacities are listed below.



Specs: Stren-Flex 4" Wide x 3 Feet Endless Nylon Sling 1 Ply

  • Sling Type: Endless

  • Width: 4"

  • Number of Plies: 1

  • Length: 3 ft (other lenghts available upon request. Email Us for a Addtional info)

  • Vertical Hitch Capacity: 11,500 lb.

  • Choker Hitch Capacity: 9,200 lb.

  • Basket Hitch Capacity: 32,200 lb.

  • Material: Nylon

  • Web Grade: Heavy-Duty

  • Color: Yellow


WARNING

Do not use strap if there are any signs of cut webbing, heat or chemical damage.
Do not attempt to use strap above rated capacity.
Alternate hardware available
Webbing straps must be protected when used on rough or sharp objects. Straps that are cut, worn or otherwise damaged should not be used.
A strap is only as strong as its weakest component.

Dahua Sling an ISO 9001 certified firm by Lloyd's Register and a member of WSTDA & LEEA(Lifting Equipment Engineers Association), specializes in the field of lifting & hoisting equipment, webbing and round sling, Ratchet Tie Down and lashing equipment, chain & chain sling, wire rope and wire rope sling, material handling, rigging hardware & other products.





Common applications for these slings are lifting, positioning and transport timber kit housing panels and roof trusses. They can also be used for packaging products ready for dispatch or on productions lines for assembling components during the assembly process.

These slings can be built into a structure (at the designated load balance points) so that no additional slinging is required saving both compatibility issues, time wasted using an alternative slinging method and therefore also time on site is saved.

After the load has reached its final destination the slings can be detached or left built into the structure and hidden away but then obviously they must not and should not be used again after the primary lift that they were assigned to is complete.

The weight of the loads that these slings are designed for range from just a few kilos up to 1000kg as standard, however larger capacities are available on request and also multiple slings can be used for heavy or more complex loads.

The slings are engineered and tested at the point of manufacture with a safety factor of 7:1 and labelled accordingly.



Each order of slings can be batch tested on our in-house calibrated tensile testing equipment to class 0.5 accuracy (0.5% max deviation).

These slings may be used for multiple lifts on the load they are primarily attached to, but must not be removed and re-used on another load.

Standard slings are available in 1000mm, 1200mm, 1600mm and 1800mm circumferences which is divided by 2 to calculate the Effective Working Length (EWL), due to them being endless belts, however other lengths are available as special/custom/bespoke units.

*Safety Factor is calculated as Working Load Limit (WLL) multiplied by a factor of 7 to equal minimum breaking force when new e.g. a 500kg WLL x 7 = 3, 500 Kg minimum breaking load (when new).

Features

  • Single Use - One Way

  • Low cost, simple design

  • Easy to use

  • Stronger and more compact than rope or wire rope alternative solutions.

  • Can be attached or built in to a structure or load, but must only be used to perform a single complete lift.

  • Saves time and cost on-site slinging and reslinging loads.

  • Fully manufactured, labelled and tested in accordance with BS EN 1492-1:2000 or upon request, manufactured to your commercial specifications with supporting technical file.

  • Available as standard in 25mm, 35mm and 50mm widths in endless format or as bespoke units with loops each end.

Specimin Test Results

  • Product Type: One Way Sling

  • Webbing type: Polyester Seat Belt

  • Webbing Width: 48mm

  • Test Name: Tensile Test

  • Test Type: Tensile

  • Test Date: 08/03/2007 16:43

  • Test Speed: 100.00mm/min

  • Pretension: 0.050 N

  • Sample Length: 1000.000mm

  • Force at Peak (kN) = 43.910

  • Elongation at Break (mm) = 80.602

  • Time to Failure (Secs) = 48.280
