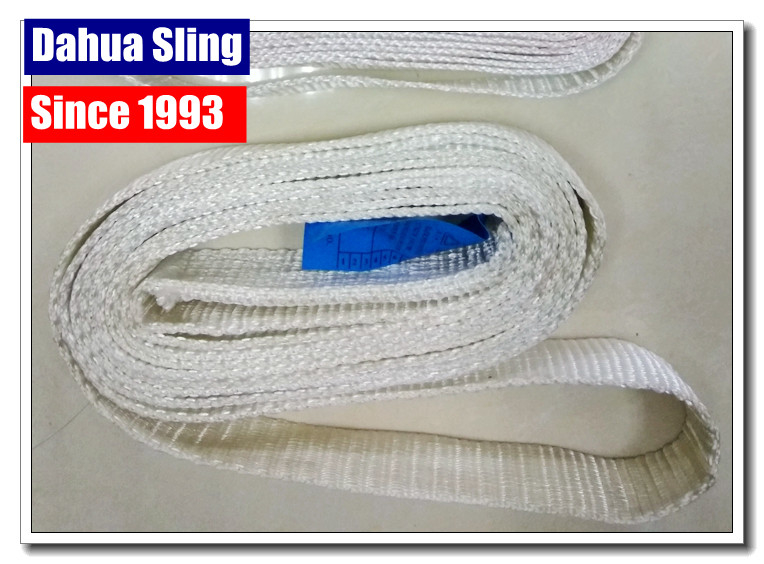

Continuous Loops Endless Lifting Slings For Housing Walls Environmental Friendly

Continuous Loops Endless Lifting Slings For Housing Walls Environmental Friendly

Continuous Loops Endless Lifting Slings For Housing Walls Environmental Friendly

Product Details:

Place of Origin: China
Brand Name: Dahua Sling
Certification: BS EN 1492-1:2000
Model Number: web sling

Payment & Shipping Terms:

Minimum Order Quantity: 1000 pcs
Price: USD 30,000 / 20'GP
Contact Now
Detailed Product Description
Logo: We Do It Oursleves Eye Protector: White Black Or Same As Webbing
Material: 100 % Polyester Layer:: 1 Layer
Packing: Blank Or Printed Sling Type: Endless Flat Webbing Sling
W.L.L: 250kg - 3000KG COLOR: White Or Yellow Sold Best
Standard: BS EN 1492-1:2000 Safety Factor: 5: 1 Or 7:1

Single Use One Way, Polyester WContinuous Loops Lifting Strap Webbing

Each order of slings can be batch tested on our in-house calibrated tensile testing equipment to class 0.5 accuracy (0.5% max deviation).

These slings may be used for multiple lifts on the load they are primarily attached to, but must not be removed and re-used on another load.

Standard slings are available in 1000mm, 1200mm, 1600mm and 1800mm circumferences which is divided by 2 to calculate the Effective Working Length (EWL), due to them being endless belts, however other lengths are available as special/custom/bespoke units.

*Safety Factor is calculated as Working Load Limit (WLL) multiplied by a factor of 7 to equal minimum breaking force when new e.g. a 500kg WLL x 7 = 3, 500 Kg minimum breaking load (when new).

Features

  • Single Use - One Way
  • Low cost, simple design
  • Easy to use
  • Stronger and more compact than rope or wire rope alternative solutions.
  • Can be attached or built in to a structure or load, but must only be used to perform a single complete lift.
  • Saves time and cost on-site slinging and reslinging loads.
  • Fully manufactured, labelled and tested in accordance with BS EN 1492-1:2000 or upon request, manufactured to your commercial specifications with supporting technical file.
  • Available as standard in 25mm, 35mm and 50mm widths in endless format or as bespoke units with loops each end.

Specimin Test Results

  • Product Type: One Way Sling
  • Webbing type: Polyester Seat Belt
  • Webbing Width: 48mm
  • Test Name: Tensile Test
  • Test Type: Tensile
  • Test Date: 08/03/2007 16:43
  • Test Speed: 100.00mm/min
  • Pretension: 0.050 N
  • Sample Length: 1000.000mm
  • Force at Peak (kN) = 43.910
  • Elongation at Break (mm) = 80.602
  • Time to Failure (Secs) = 48.280



Continuous Loops Endless Lifting Slings For Housing Walls Environmental Friendly



Continuous Loops Endless Lifting Slings For Housing Walls Environmental Friendly





30-300mm polyester lift sling endless flat webbing sling duplex webbing sling cargo sling
Product Description

Item Endless flat webbing sling
Model RLB-s1
Type Polyester Webbing Sling
Layer Single/Duplex/Four
Material 100% high tenacity polyester
Color Violet, Green, Yellow, Grey, Red, Brown, Blue, Orange or customized
WLL(work load limit) 1T, 2T, 3T, 4T, 5T, 6T, 8T, 10T, 12T, 15T, 20T or customized
Width 30~300mm or customzed
Safety Factor 7:1
Length 1~100m or customized
Shape Flat
Executive
Standard
EN1492-1
Certification ISO 9001:2008, GS and CE from TUV
MOQ 500 pcs
Price USD0.5~50/pc
Lead Time About 20 days



Continuous Loops Endless Lifting Slings For Housing Walls Environmental Friendly

Continuous Loops Endless Lifting Slings For Housing Walls Environmental Friendly
