    Product Details:

    Place of Origin: China
    Brand Name: Dahua Sling
    Certification: CE TUV/GS
    Model Number: eye eye webbing sling

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 pcs
    Price: USD 30,000 / 20'GP
    Contact Now
    Detailed Product Description
    Individual Certificates: Provide Each Sling Logo: We Do It Oursleves
    Eye Protector: White Black Or Same As Webbing Eye Type: Flat Folded
    Material: 100 % Polyester Safety Factor: 5:1 6:1 7:1 8:1
    Layer:: Single-layer, Double-layer Width:: 25mm-300mm
    Standard: EN 1492-1

    DAHUA SLING Polyester Eye-to-Eye Web Sling, 2-Ply, 2"W x 6'L Since 1993



    About us



    Webbing slings, EN 1492-1

    We manufacture Double Ply slings as per European Norm, EN 1492-1 with a Safety Factor of 7:1. The color of the webbing indicates the Safety Working Load/ Working Load Limit of the sling. Also we manufacture 3 and 4 ply lifting slings with larger lifting capacities.

    1. Individual certificates provide each sling.

    2. Each sling is provided with protection for the eyes.

    3. All slings can be provided with protective polyester sleeve of any length.

    Product Description

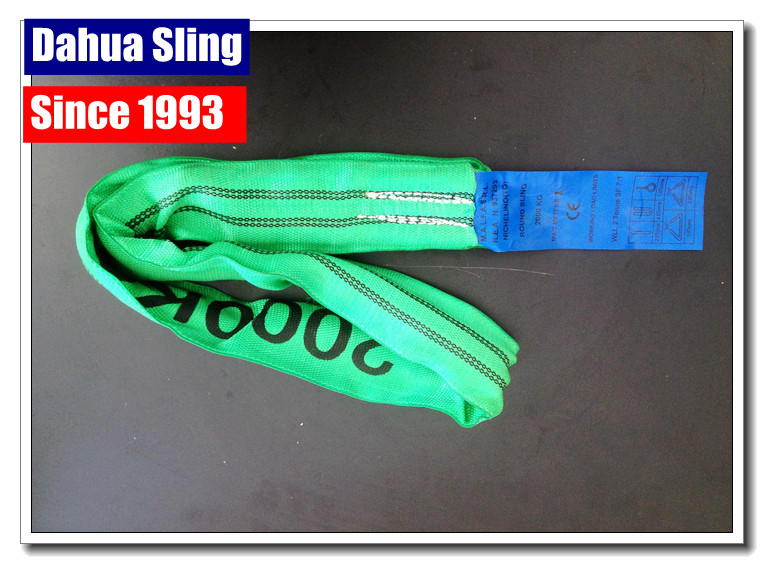

    1,000KG VIOLET   2,000KG GREEN   3,000KG YELLOW   4,000KG GREY
    width:30mm   width: 60mm   width: 90mm   width: 120mm
    CODE LENGTH(M)   CODE LENGTH(M)   CODE LENGTH(M)   CODE LENGTH(M)
    FSE-2-1000-0.5 0.5   FSE-2-2000-0.5 0.5   FSE-2-3000-1 1.0   FSE-2-4000-1 1.0
    FSE-2-1000-1 1.0   FSE-2-2000-1 1.0   FSE-2-3000-1.5 1.5   FSE-2-4000-1.5 1.5
    FSE-2-1000-1.5 1.5   FSE-2-2000-1.5 1.5   FSE-2-3000-2 2.0   FSE-2-4000-2 2.0
    FSE-2-1000-2 2.0   FSE-2-2000-2 2.0   FSE-2-3000-2.5 2.5   FSE-2-4000-2.5 2.5
    FSE-2-1000-2.5 2.5   FSE-2-2000-2.5 2.5   FSE-2-3000-3 3.0   FSE-2-4000-3 3.0
    FSE-2-1000-3 3.0   FSE-2-2000-3 3.0   FSE-2-3000-3.5 3.5   FSE-2-4000-3.5 3.5
    FSE-2-1000-3.5 3.5   FSE-2-2000-3.5 3.5   FSE-2-3000-4 4.0   FSE-2-4000-4 4.0
    FSE-2-1000-4 4.0   FSE-2-2000-4 4.0   FSE-2-3000-4.5 4.5   FSE-2-4000-4.5 4.5
    FSE-2-1000-4.5 4.5   FSE-2-2000-4.5 4.5   FSE-2-3000-5 5.0   FSE-2-4000-5 5.0
    FSE-2-1000-5 5.0   FSE-2-2000-5 5.0   FSE-2-3000-5.5 5.5   FSE-2-4000-5.5 5.5
    FSE-2-1000-5.5 5.5   FSE-2-2000-5.5 5.5   FSE-2-3000-6 6.0   FSE-2-4000-6 6.0
    FSE-2-1000-6 6.0   FSE-2-2000-6 6.0   FSE-2-3000-6.5 6.5   FSE-2-4000-6.5 6.5
    FSE-2-1000-7 7.0   FSE-2-2000-7 7.0   FSE-2-3000-7 7.0   FSE-2-4000-7 7.0
    FSE-2-1000-8 8.0   FSE-2-2000-8 8.0   FSE-2-3000-8 8.0   FSE-2-4000-8 8.0
    FSE-2-1000-9 9.0   FSE-2-2000-9 9.0   FSE-2-3000-10 10.0   FSE-2-4000-10 10.0
    FSE-2-1000-10 10.0   FSE-2-2000-10 10.0

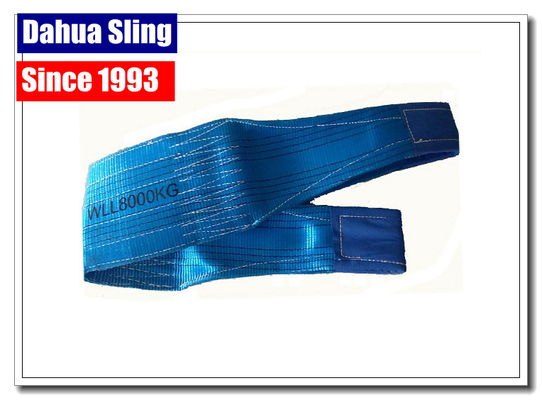

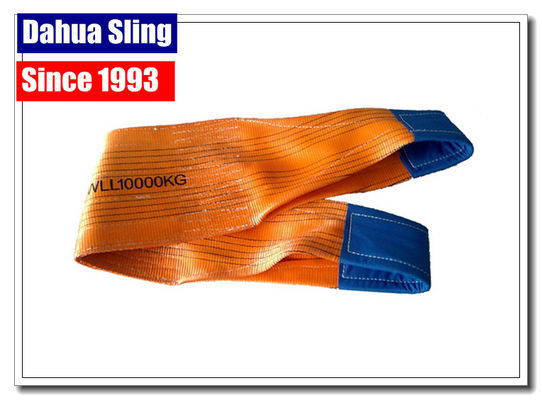

    5,000KG RED   6,000KG BROWN   8,000KG BLUE   10,000KG ORANGE
    width:150mm   width: 180mm   width: 240mm   width:300mm
    CODE LENGTH(M)   CODE LENGTH(M)   CODE LENGTH(M)   CODE LENGTH(M)
    FSE-2-5000-1.5 1.5   FSE-2-6000-1.5 1.5   FSE-2-8000-1.5 1.5   FSE-2-10000-1.5 1.5
    FSE-2-5000-2 2.0   FSE-2-6000-2 2.0   FSE-2-8000-2 2.0   FSE-2-10000-2 2.0
    FSE-2-5000-3 3.0   FSE-2-6000-3 3.0   FSE-2-8000-3 3.0   FSE-2-10000-3 3.0
    FSE-2-5000-4 4.0   FSE-2-6000-4 4.0   FSE-2-8000-4 4.0   FSE-2-10000-4 4.0
    FSE-2-5000-5 5.0   FSE-2-6000-5 5.0   FSE-2-8000-5 5.0   FSE-2-10000-5 5.0
    FSE-2-5000-6 6.0   FSE-2-6000-6 6.0   FSE-2-8000-6 6.0   FSE-2-10000-6 6.0
    FSE-2-5000-7 7.0   FSE-2-6000-7 7.0   FSE-2-8000-7 7.0   FSE-2-10000-7 7.0
    FSE-2-5000-8 8.0   FSE-2-6000-8 8.0   FSE-2-8000-8 8.0   FSE-2-10000-8 8.0
    FSE-2-5000-9 9.0   FSE-2-6000-9 9.0   FSE-2-8000-9 9.0   FSE-2-10000-9 9.0
    FSE-2-5000-10 10.0   FSE-2-6000-10 10.0   FSE-2-8000-10 10.0   FSE-2-10000-10

    10.0



    Full company name Nanjing dahua special belt knit
    Register date: 1993-01-01
    Business License No. 91320100608919015B
    Tax No. 320112608919015
    Export License Registration No.: 0305519
    ISO9001 No. TUV Rheinland [01100038901]
    GS No. TUV Rheinland [S502223800001] [S50222380 0002]
    Factory Self-owned for 25 years (since 1993)
    Workers 187 workers, 60% with 10+ years experience
    Export volume yearly 1200 Tons Ratchet Tie Downs
    Total Building Size: 24000 Square meters
    Office Size: 3800 Square meters
    Address: No.2 Changsheng Road, Getang, Nanjing, China 210048
    Website: www.dahua-sling.com





    Polymer edge yarns resist cutting and abrasion
    • 2x stronger after abrasion and 2x better edge cut resistance
    • Lightweight, flexible material easily conforms to load
    • Red core yarn warns of wear and aids in inspection
    • Tuff-Tag provides required OSHA information for the life of the sling
    • Rated capacity (lb.): 6,400 vertical, 5,000 choker, 12,800 basket
    • Complies with OSHA and ASME standards



    Material: 100% Polyester
    Safety Factor:5:1, 6:1, 7:1, 8:1

    Standard: ISO4878, EN1492-1, ASME B30.9, AS1353




    Eye-Eye webbing sling is made from high tenacity 100% polyester webbing with reinforced eye loops at both ends.It can be made from one layer to four layers, which we usually call Simplex webbing sling, Duplex webbing sling, Triplex webbing sling and Quadraplex. And the eyes can be made into Flat eyes, Twisted eyes and Reversed eyes. Eye-eye webbing slings are versatile as they can be used in choker, vertical, or basket hitches.Polyester fabric has low elongation, so it’s better able to hold the load without the risk of shocking.OEM service is also available.


    1T WEBBING SLING Modelo Color Safety factor Widthmm) M.B.S(kg)
    Lightweight Flat Lifting Slings Webbing Sling Belt EN 1492-1 Standard

    5DEE010

    Purple 5:1 25 5T
    6DEE010 Purple 6:1 25/38 6T
    7DEE010 Purple 7:1 30/50/60 7T
    8DEE010 Purple 8:1 50 8T





    2T WEBBING SLING Modelo Color Safety factor Widthmm) M.B.S(kg)
    Lightweight Flat Lifting Slings Webbing Sling Belt EN 1492-1 Standard 5DEE020 Green 5:1 50 10T
    6DEE020 Green 6:1 50 12T
    7DEE020 Green 7:1 50/60 14T
    8DEE020 Green 8:1 65 16T



    3T WEBBING SLING Modelo Color Safety factor Widthmm) M.B.S
    Lightweight Flat Lifting Slings Webbing Sling Belt EN 1492-1 Standard 5DEE030 Yellow 5:1 75 15T
    6DEE030 Yellow 6:1 75 18T
    7DEE030 Yellow 7:1 75/90 21T
    8DEE030 Yellow 8:1 95 24T



    4T WEBBING SLING Modelo Color Safety factor Widthmm) M.B.S
    Lightweight Flat Lifting Slings Webbing Sling Belt EN 1492-1 Standard 5DEE040 Grey 5 100 20T
    6DEE040 Grey 6 100 24T
    7DEE040 Grey 7 100/120 28T
    8DEE040 Grey 8 120 32T



    5T WEBBING SLING Modelo Color Safety factor Widthmm) M.B.S(kg)
    Lightweight Flat Lifting Slings Webbing Sling Belt EN 1492-1 Standard 5DEE050 Red 5:1 125 25T
    6DEE050 Red 6:1 125 30T
    7DEE050 Red 7:1 125/150 35T
    8DEE050 Red 8:1 150 40T



    6T WEBBING SLING Modelo Color Safety factor Widthmm)) M.B.S(kg)
    Lightweight Flat Lifting Slings Webbing Sling Belt EN 1492-1 Standard 5DEE060 Brown 5:1 150 30T
    6DEE060 Brown 6:1 150 36T
    7DEE060 Brown 7:1 150/180 42T
    8DEE060 Brown 8:1 180 48T



    8T WEBBING SLING Modelo Color Safety factor Widthmm) M.B.S
    Lightweight Flat Lifting Slings Webbing Sling Belt EN 1492-1 Standard 5DEE080 Blue 5:1 200 40T
    6DEE080 Blue 6:1 200 48T
    7DEE080 Blue 7:1 200/240 56T
    8DEE080 Blue 8:1 240 64T



    10T WEBBING SLING Modelo Color Safety factor Widthmm) M.B.S
    Lightweight Flat Lifting Slings Webbing Sling Belt EN 1492-1 Standard 5DEE100 Orange 5:1 250 50T
    6DEE100 Orange 6:1 250 60T
    7DEE100 Orange 7:1 250/300 70T
    8DEE100 Orange 8:1 300 80T




    CAUTIONS:

    - Do not attempt to use sling above rated lifting capacity.
    - When selecting a sling,it is very important to consider the angles at which the sling will be used.
    - Slings are subject to cutting when ifting items with sharp egeds.In this case,always use protective sleeves
    - Do not use a damaged sling,and se only if trained.
    - Do not tie knots in sling webbing as strength is greatly reduced.
    - Never drag a sling beneth from a load which is resting on it.
    - Chemical active environments can affect the strength of slings
    - Inspect slings weekly or more frequently depending on the sling use conditions.
    - Always strore slings in a cool,dry and dark place to extend the working lift.
    - Always read and understand the operating instructions before use.
    - Failure to comply with this warning may result in serious load damageand death or injury.





    When using flat woven webbing slings always:

    • Store and handle belt slings correctly.

    • Inspect belt slings and accessories before use and before placing into storage.

    • Follow safe slinging practices, as given overleaf.

    • Position the bight for choke lift at 120° (natural angle).

    • Position the sling so that the load is uniformly spread over its width and protect the sling from sharp edges.

    • Apply the correct mode factor for the slinging arrangement.





    When using flat woven webbing slings never:

    • Attempt to shorten, knot or tie belt slings.

    • Expose belt slings to direct heat or flames.

    • Use belt slings at temperatures above 80°C or below 0°C without consulting the supplier.

    • Expose belt slings to chemicals without consulting the supplier.

    • Shock load belt slings.

    • Use belt slings which are cut or which have loose or damaged stitching





    Selecting the Correct Sling

    Belt slings are available in a range of materials and sizes in single leg and endless sling forms. Select the slings to

    be used and plan the lift taking the following into account:





    Material

    Polyester is resistant to moderate strength acids but is damaged by alkalis; polyamide (Nylon) is virtually immune to

    alkalis but is damaged by acids; and polypropylene is little affected by acids or alkalis but is damaged by some

    solvents, tars and paints.



    Capacity

    The sling must be both long enough and strong enough for the load and the slinging method. Apply the mode factor

    for the slinging method. For use at temperatures exceeding 80°C or below 0°C refer to the suppliers instructions. If

    the slings are used in multi-leg arrangement the angle formed between the legs should not be less than 30° or

    greater than 90°. If abrasion, heat generated by friction or cutting from edges or corners are likely, select a sling

    fitted with protective sleeves and/or use suitable packing.





    Storing and Handling Belt Slings

    Never return wet, damaged or contaminated slings to storage. They should be cleaned with clear water and dried

    naturally. Never force dry belt slings. Store belt slings hung from non-rusting pegs which allow the free circulation of

    air. The storage area should be dry, clean, free of any contaminates and shaded from direct sunlight. Do not alter,

    modify or repair a belt sling but refer such matters to a Competent Person.

    NOTE: The material from which the sling is manufactured may be identified by the colour of the label or printing on

    the label: Polyester = Blue, Polyamide (Nylon) = Green, Polypropylene = Brown and the sling may also be dyed with

    a colour code to indicate SWL.





    Using Belt Slings Safely

    Do not attempt lifting operations unless you understand the use of the equipment, the slinging procedures and the

    mode factors to be applied. Do not use defective slings or accessories. Check the correct engagement with fittings

    and appliances, ensure smooth radii are formed, do not twist or cross slings and do not overcrowd fittings. Position

    the sling so that the load is uniformly spread over its width. Position the bight for a choke lift at the natural (120°)

    angle to prevent friction being generated. Ensure that stitching is in the standing part of the sling away from hooks

    and other fittings. Take the load steadily and avoid shock loads. Do not leave suspended loads unattended. In an

    emergency cordon off the area.





    In-service Inspection, Maintenance and Replacement



    Inspect slings each day before use, looking for:

    • Missing or unreadable ID tag
    • Melted, charred or weld-splattered areas
    • Acid or alkali burns
    • Holes, tears, cuts, snags or embedded particles
    • Broken or worn stitching
    • Excessive abrasive wear or elongation
    • Knots or brittle areas
    • Broken, corroded, pitted distorted fittings

    Do not use worn or damaged slings or attachments. Discard or repair them. Use damaged slings only after they are repaired, reconditioned, and proof tested by the sling manufacturer or a qualified person. Keep certificates of proof test.



    Maintenance requirements are minimal. Belt slings may be cleaned with clear water. Remember weak chemical

    solutions will become increasingly stronger by evaporation. Regularly inspect belt slings and, in the event of the

    following defects, refer the sling to a Competent Person for thorough examination: illegible markings; damaged,

    chaffed or cut webbing; damaged or loose stitching; heat damage; burns; chemical damage; solar degradation;

    damaged or deformed end fittings.



    Lightweight Flat Lifting Slings Webbing Sling Belt EN 1492-1 Standard
